HEAVY LOAD TACTICAL
9 Cells Square – reserve PARACHUTE
TPDS-HLT-R-SQ
TPDS-HLT-R-SQ

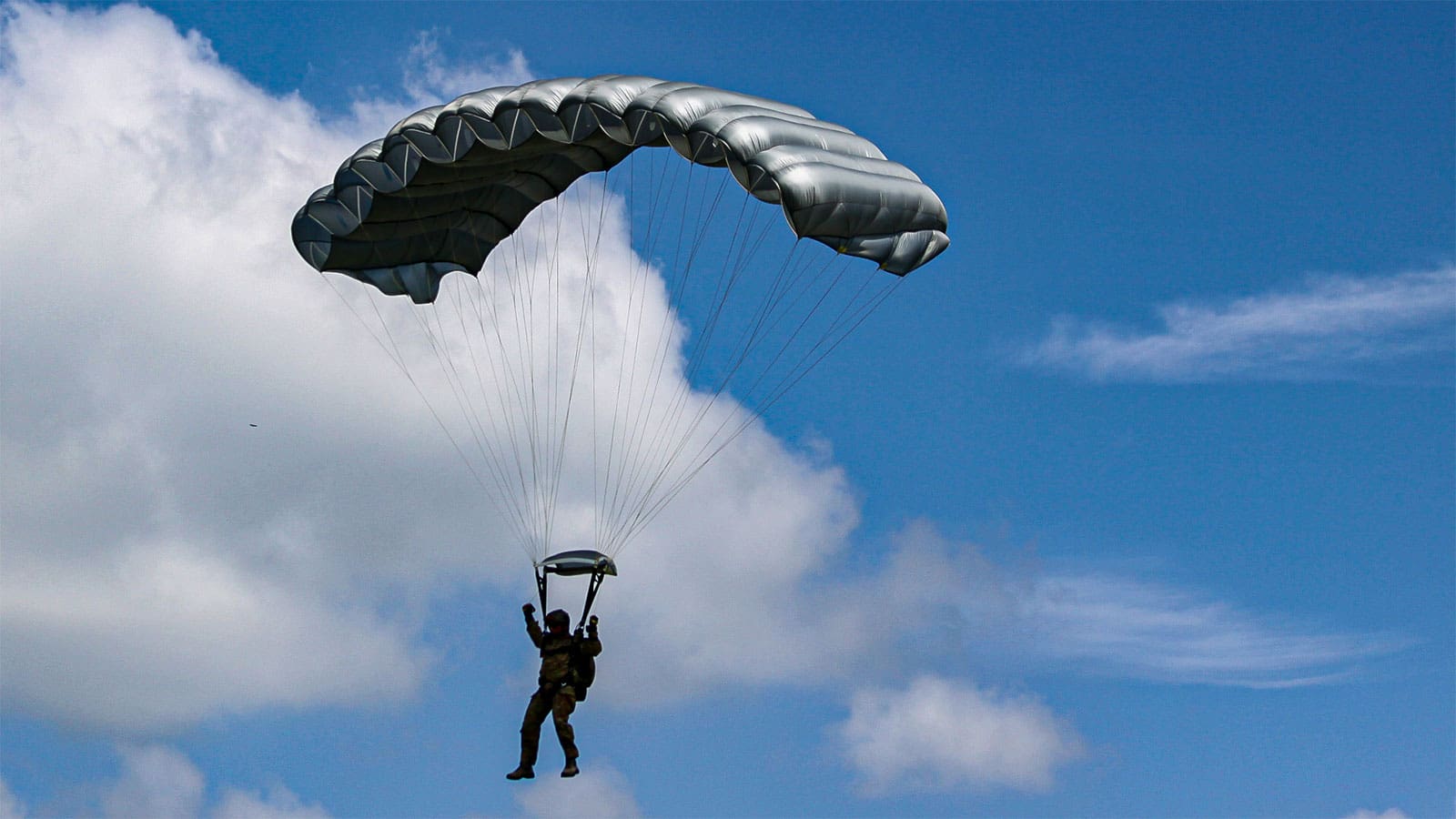

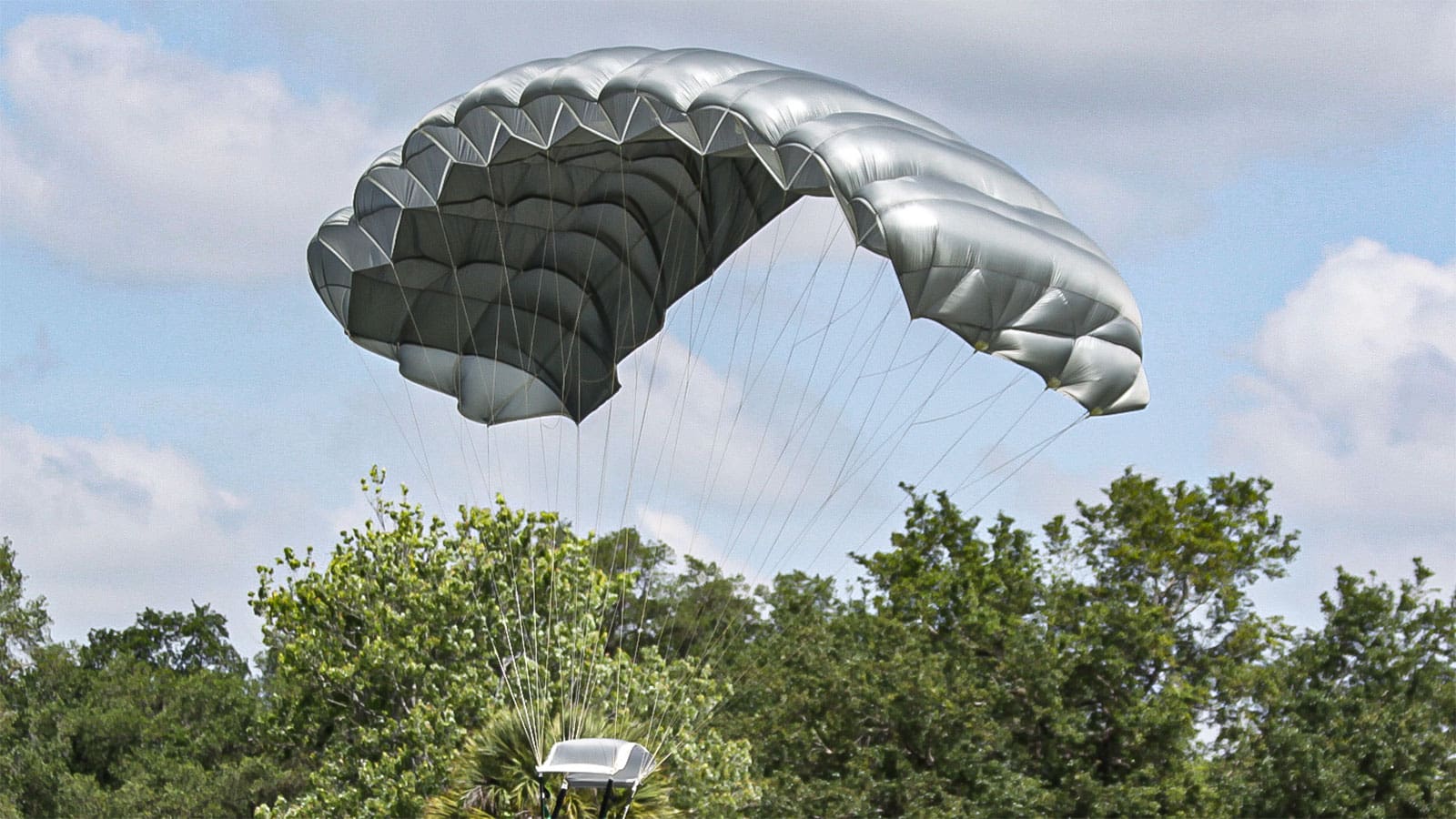

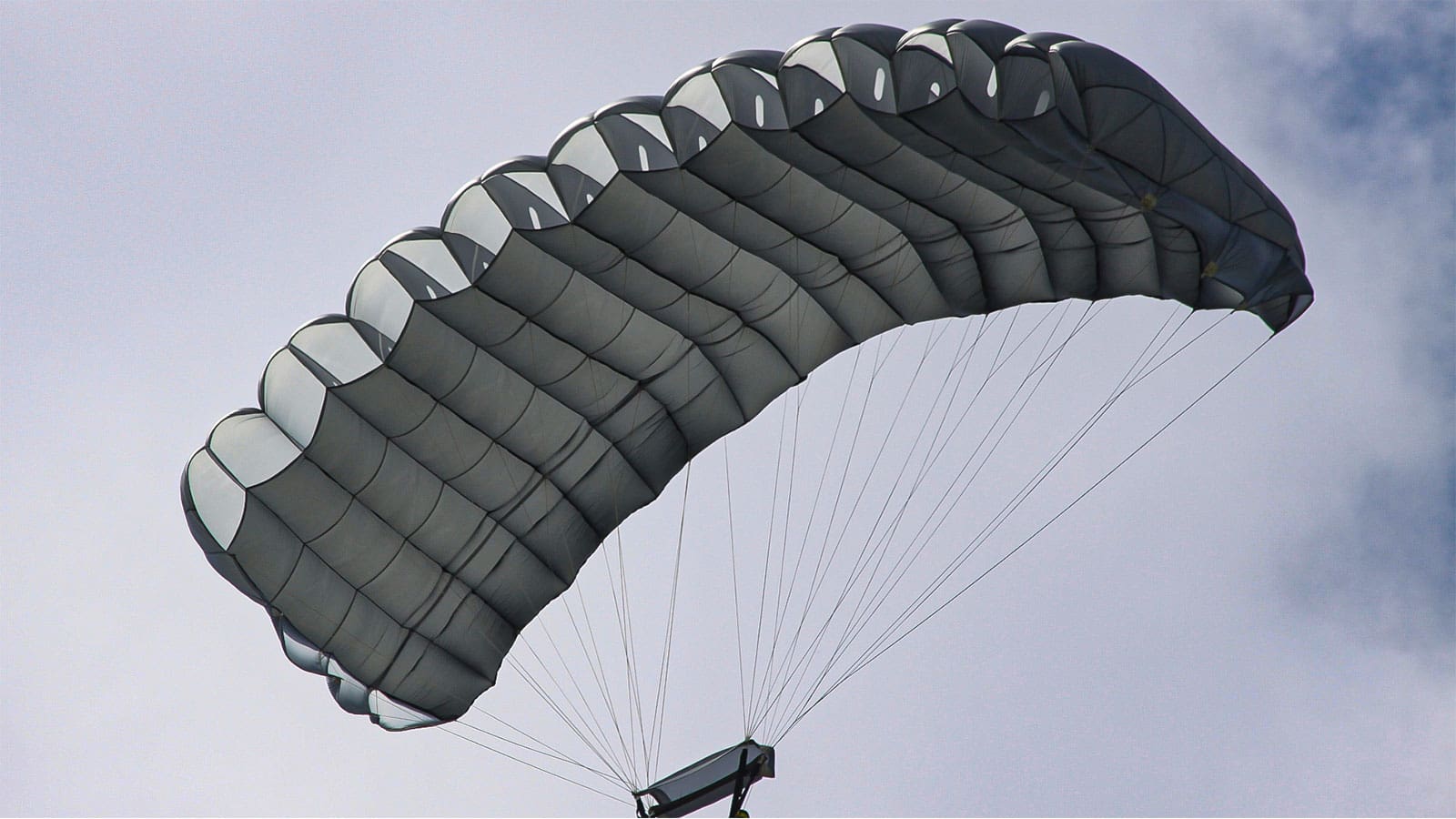

The TPDS-HLT-R-SQ is a medium aspect ratio, nine (9) cell ram-air reserve parachute specifically engineered for heavy load tactical operations utilizing HAHO (High Altitude High Opening) and HALO (High Altitude Low Opening) profiles.
Designed to meet the rigorous demands of modern airborne missions, this reserve canopy delivers exceptional performance, reliability, and safety under the most extreme conditions.
Key Features:
-
Canopy Size Range: 300 sq ft to 460 sq ft
-
Design: 9-cell ram-air canopy with a medium aspect ratio
-
Application: Heavy load tactical missions (HAHO/HALO)
-
Material: Constructed from 1.1 oz 0-3 cfm ripstop nylon for durability and low porosity
-
Performance: Proven track record of safety and stable flight characteristics during high-stress deployments
-
Reliability: Engineered and tested to perform in the most demanding operational environments
Whether executing a precision insertion or managing high-altitude drops with large payloads,
the TPDS-HLT-R-SQ offers unmatched confidence in reserve canopy performance.
Size & Technical Specifications
Material options: Hybrid | Lines: Spectran or Vectran
| MODEL - P/N | AREA | SPAN | CHORD | ASPECT RATIO | MIN SUPPORTED WEIGHT | MAX SUPPORTED WEIGHT |
|---|---|---|---|---|---|---|
| TPDS-HLT-R9-SQ | 300 ft² | 29.1 ft | 10.7 ft | 2.7:1 | 155 lb | 434 lb |
| TPDS-HLT-R9-SQ | 330 ft² | 30.4 ft | 11.2 ft | 2.7:1 | 170 lb | 476 lb |
| TPDS-HLT-R9-SQ | 350 ft² | 31.3 ft | 11.5 ft | 2.7:1 | 180 lb | 504 lb |
| TPDS-HLT-R9-SQ | 370 ft² | 32.2 ft | 11.8 ft | 2.7:1 | 190 lb | 532 lb |
| TPDS-HLT-R9-SQ | 390 ft² | 33.1 ft | 12.1 ft | 2.7:1 | 200 lb | 560 lb |
| TPDS-HLT-R9-SQ | 410 ft² | 33.8 ft | 12.4 ft | 2.7:1 | 210 lb | 588 lb |
| TPDS-HLT-R9-SQ | 430 ft² | 34.7 ft | 12.7 ft | 2.7:1 | 220 lb | 616 lb |
| TPDS-HLT-R9-SQ | 460 ft² | 35.8 ft | 13.1 ft | 2.7:1 | 235 lb | 658 lb |
